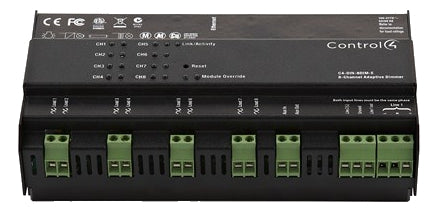

The Control4® 8-Channel Dimmer controls up to eight (8) loads from one module in the Control4® system. It is an adaptive phase dimmer, so each channel supports a variety of load types including Incandescent, Halogen, Electronic Low Voltage (solid state) Transformers, Magnetic (iron core) Low Voltage Transformers, Fluorescents, Compact Fluorescents, LEDs and Motors. The 8-Channel Dimmer automatically detects the load type and sets the appropriate dimming mode.

Features

• Controls up to eight (8) loads and supports a variety of load types
• Each channel can be set to different dimming modes including Switch Mode, Forward Phase Mode, Reverse Phase Mode or Autodetect Mode
• Channel buttons allow for toggling on/off or ramping up/down a load
• Channel status LEDs indicate whether a load is on, off or in short circuit fault
• Module override button allows toggling between the module override scene and all channels off or setting the module override scene to current channel levels
• Module status LED indicates if module power is on with normal operation, off or in thermal overload
• Link/Activity LED indicates system link status, communication activity or firmware update status
• Reset button can be use for factory default or various IP configuration settings
• Auxiliary override connection allows a standard line-voltage toggle switch to control the attached lights before the control system is installed or in case the controller malfunctions
• Module can be installed in either a Control4® 5 or 2-slot panel or a third-party DIN rail panel
• California Title 20 compliant. See ctrl4.co/title20 for more information on Title 20 / Title 24 compliance
