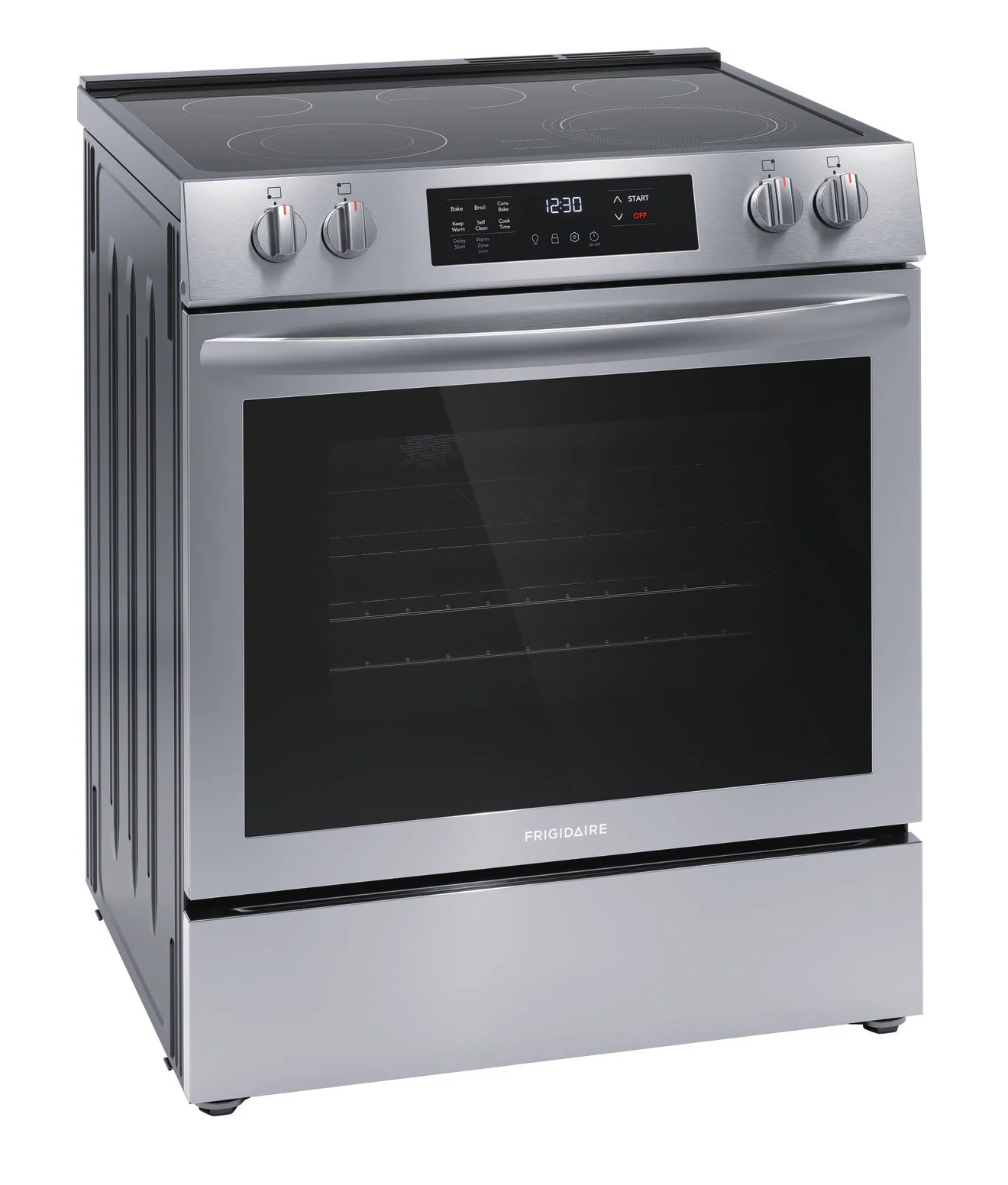

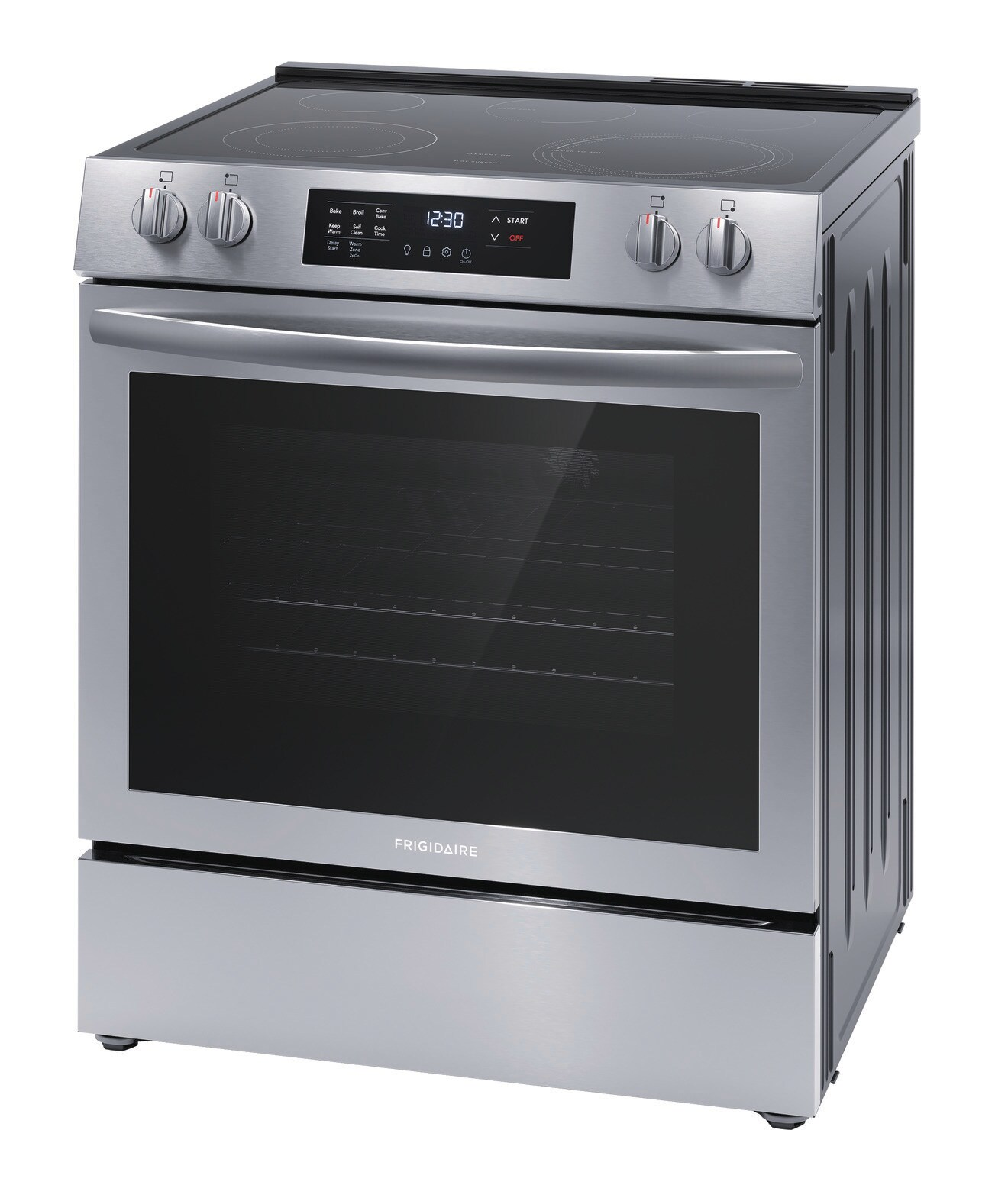

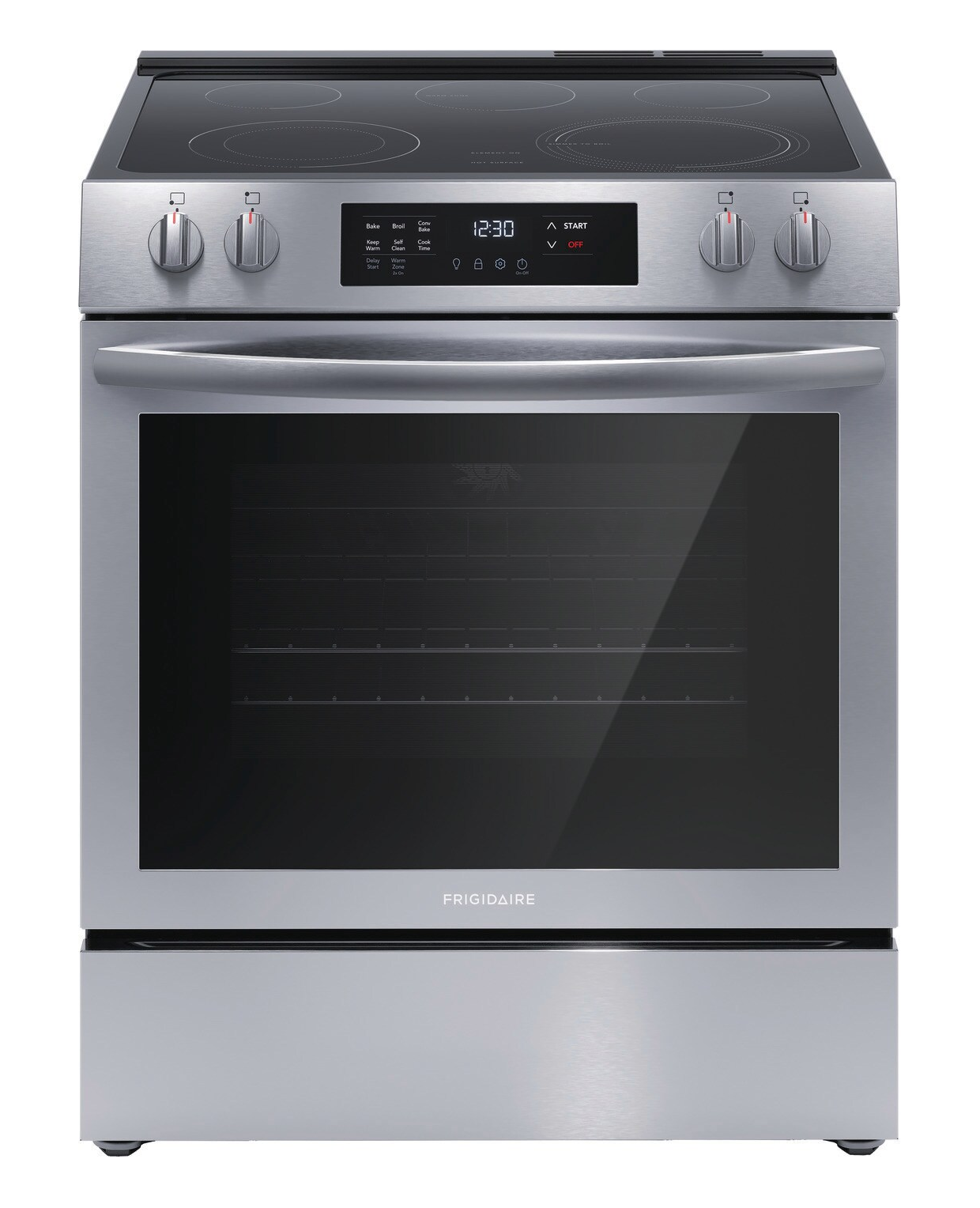

The Frigidaire 30" Front Control Electric Range with Convection Bake delivers faster, more even baking results. Plus, our new Even Temp(TM) cooktop element reduces hot and cold spots in your pan, providing consistent results every time. Also features a convenient 3 hour self clean cycle.

• Faster, more even baking results with Convection Bake
• EvenTemp cooktop element delivers consistent heat across the pan
• Five element cooktop provides the ultimate cooking flexibility

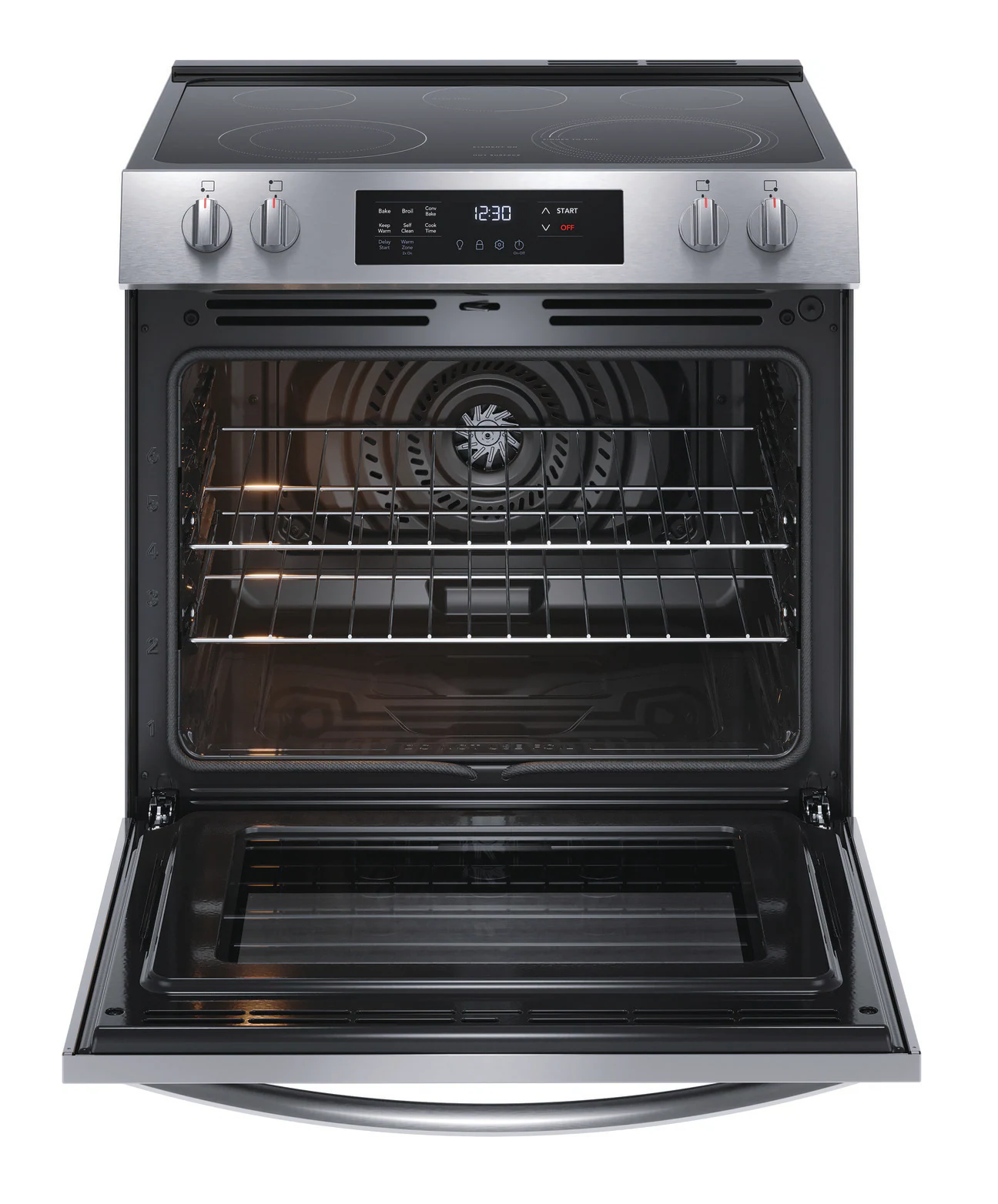

Achieve better baking results with Convection Bake
Get faster, more even baking results with our fan convection baking system.

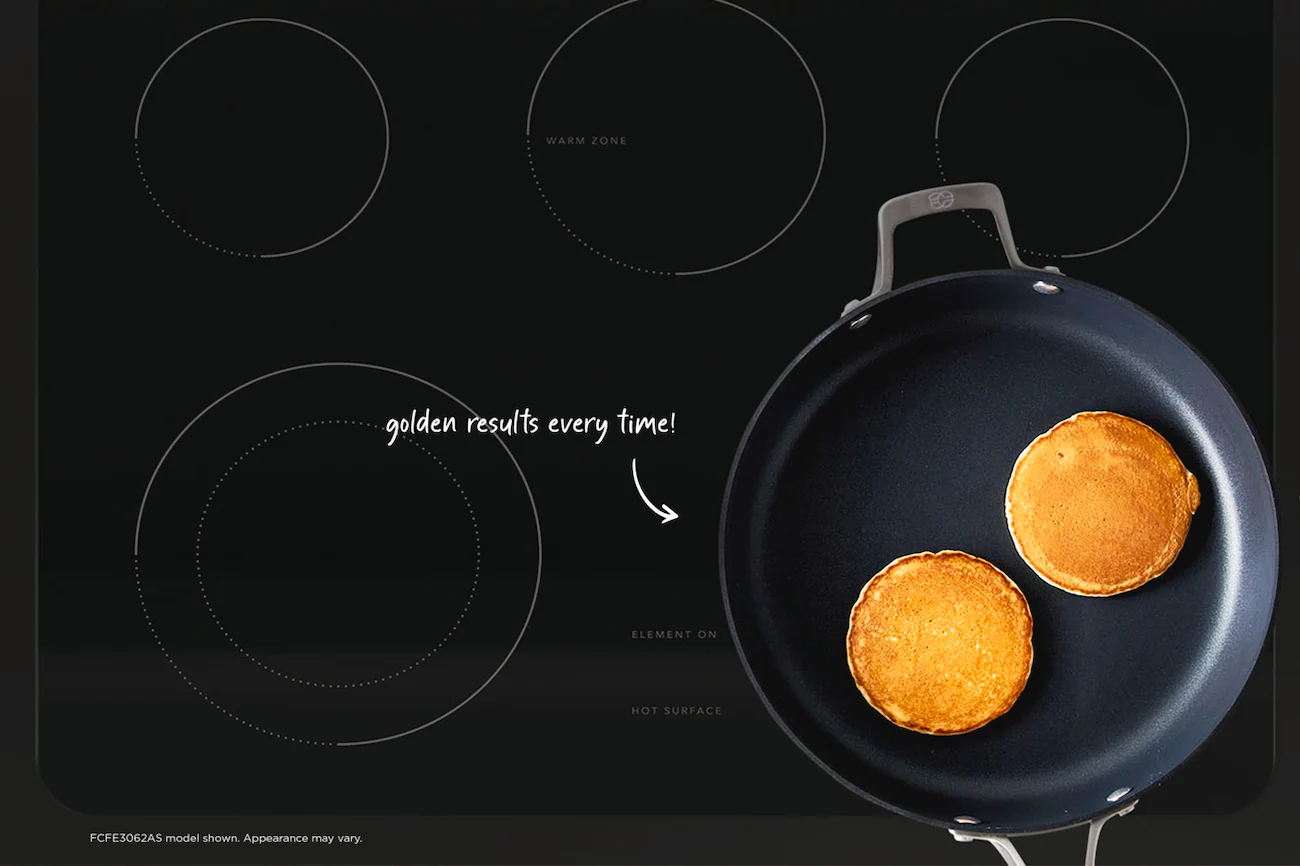

Consistent Results with the EvenTemp™ Cooktop Element
With our EvenTemp™ cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

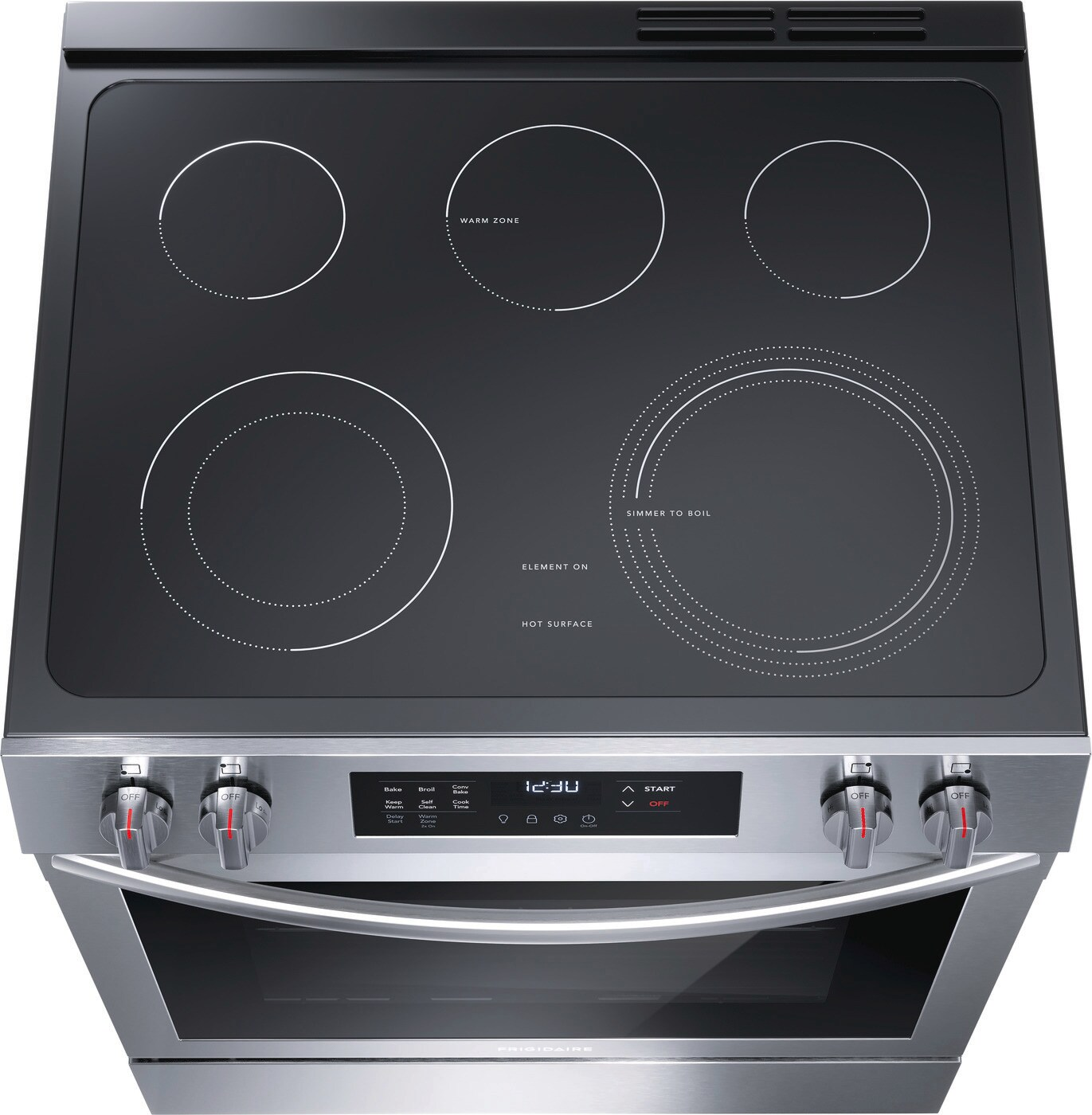

Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp™ element, a Dual Expandable Element and a convenient Warm Zone.

One-Touch Self Clean
A convenient 3-hour self clean cycle cleans your oven, so you don't have to.

SpaceWise® Dual Expandable Element
Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.

Extra Wide Store-More™ Storage Drawer
Our redesigned Store-More™ Storage drawer is now even wider - allowing you to store any unused oven racks or baking trays.

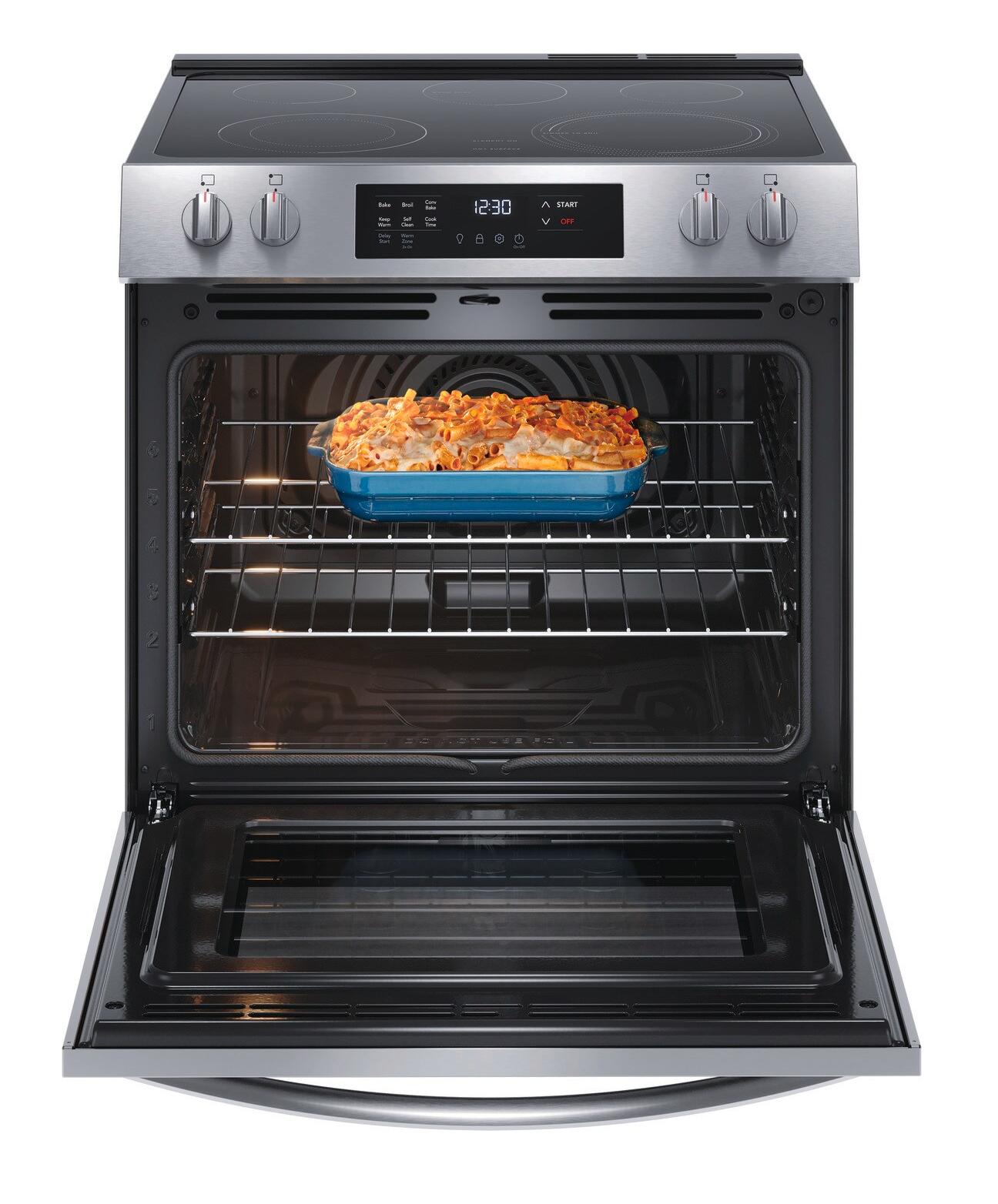

Extra Large Oven Capacity
Cook more at once with our extra-large, 5.3 cu.ft. capacity oven.

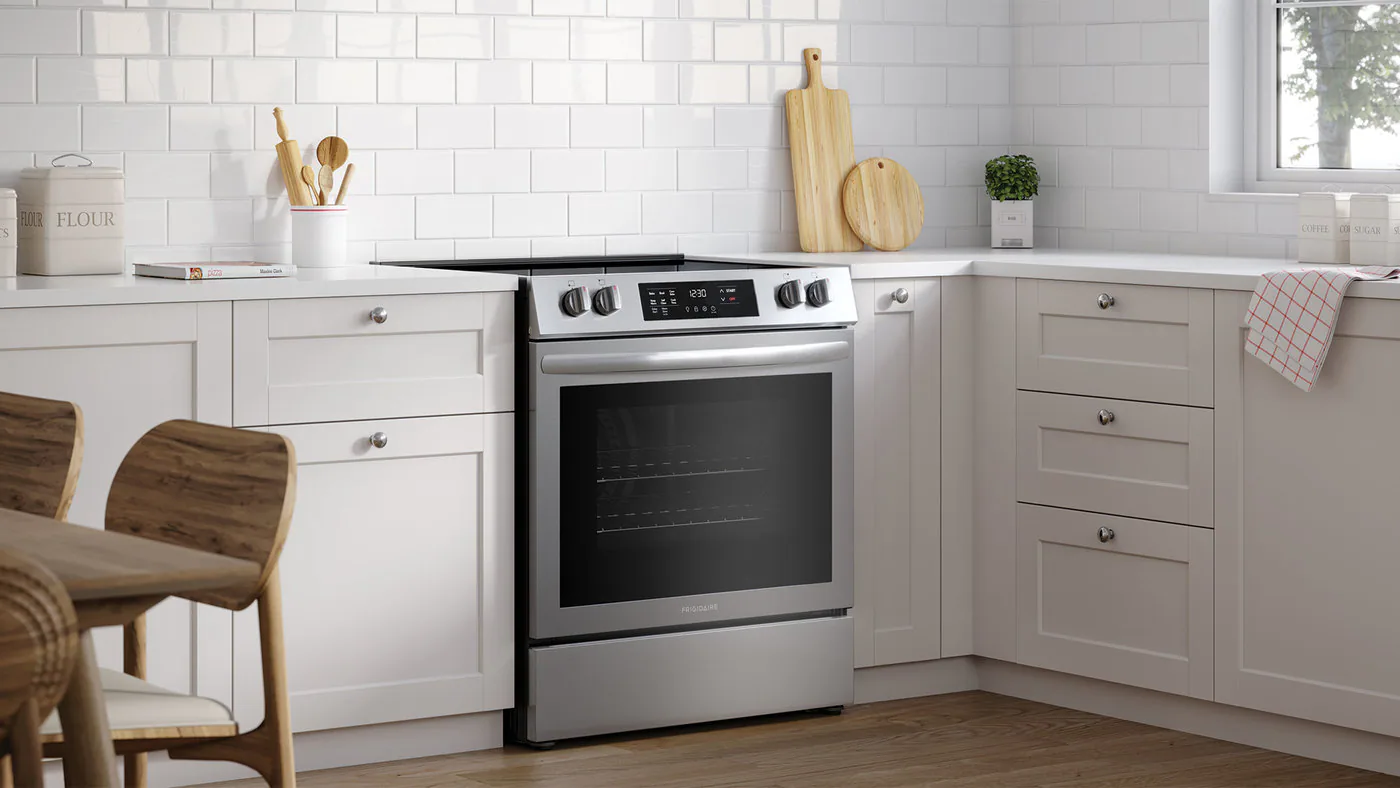

Upgrade your Kitchen with a Built-in Look
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.

Peace of Mind with the Frigidaire® Fit Promise
We promise that your new 30" Frigidaire front control range will fit your existing range cutout of the same width and configuration, or we will reimburse you up to one hundred dollars for professionally modifying the countertop. 1

Cleanup is easier with Hidden Bake
Lower heating elements are beneath the oven floor, making for a smooth surface that is easy to clean.

Cooktop Keep Warm Zone
Keep food warm until everything - and everyone - is ready.

Specifications

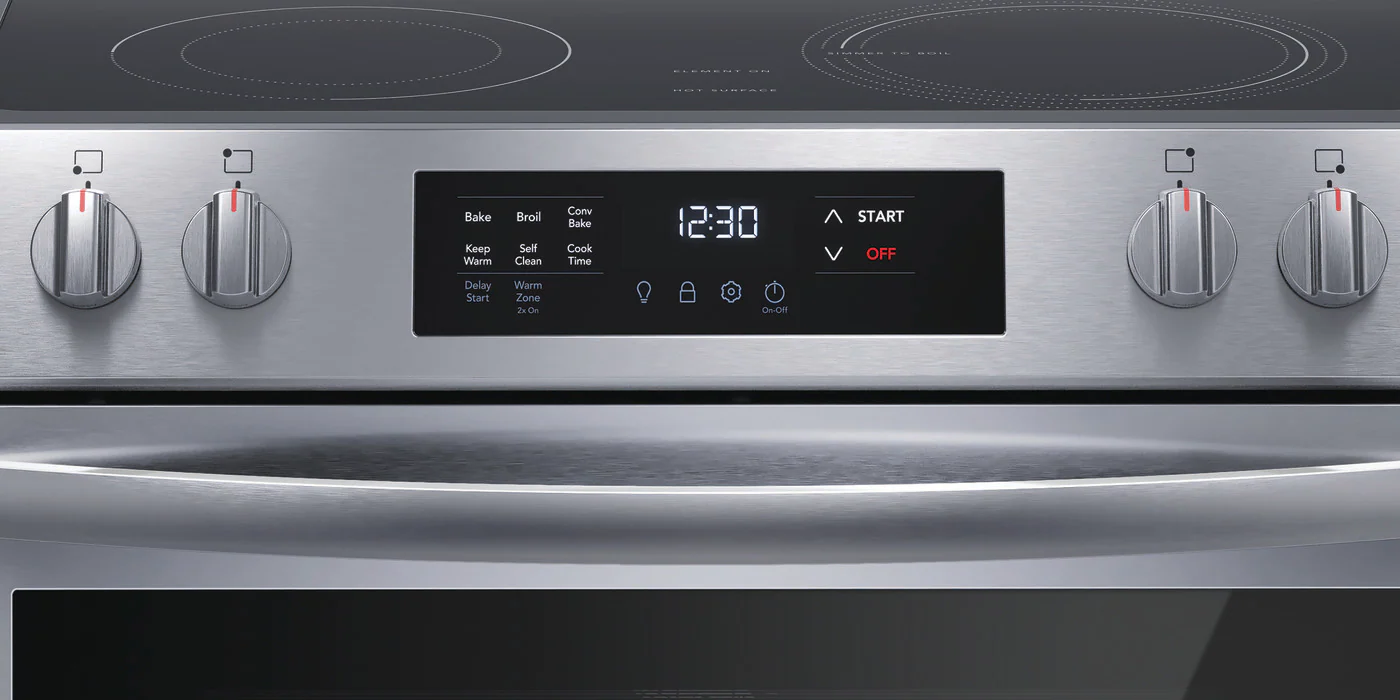

Controls
Control Lock: Yes
Sabbath Mode: No

Cooking Controls
Bake: Yes
Bake Time: Yes
Broil: Yes
Cancel: Yes
Clock: Yes
Convection Bake: Yes
Cook Time: Yes
Delay Clean: Yes
Delay Start: Yes
Door Lock: Yes
Keep Warm: Yes
Kitchen Timer: Yes
Lockout: Yes
Off: Yes
Oven Light: Yes
Oven Lock: Yes
Preheat: Yes
Self Clean: Yes
Set Clock: Yes
Start: Yes
Temperature Display: Yes
Timed Bake: Yes
Up / Down Arrow: Yes
Warm Zone: Yes

Cooking Controls Function
Program Fahrenheit or Celsius: Yes
Timed Cooking: Yes

Performance Certifications and Approvals
ADA Compliant: Yes
UL Listed: Yes
RoHS: Yes

Cooktop
Cooking Surface Type: Smooth
Element On Indicator Light: Yes
Hot-Surface Indicator Light: Yes
Keep Warm Zone Light: Yes

Cooktop Performance
Right Front Element Burner Size: 9"
Right Rear Element Burner Size: 6"
Left Front Element Burner Size (Small): 6"
Left Front Element Burner Size (Large): 9"
Left Rear Element Burner Size: 6"
Right Front Element Burner: 3,200 Watts
Right Rear Element Burner: 1,200 Watts
Left Front Element Burner (Small): 1,400 Watts
Left Front Element Burner (Large): 3,000 Watts
Left Rear Element Burner: 1,200 Watts
Center Rear Element Burner: 100 Watts
Keep Warm Burner Location: Center Rear

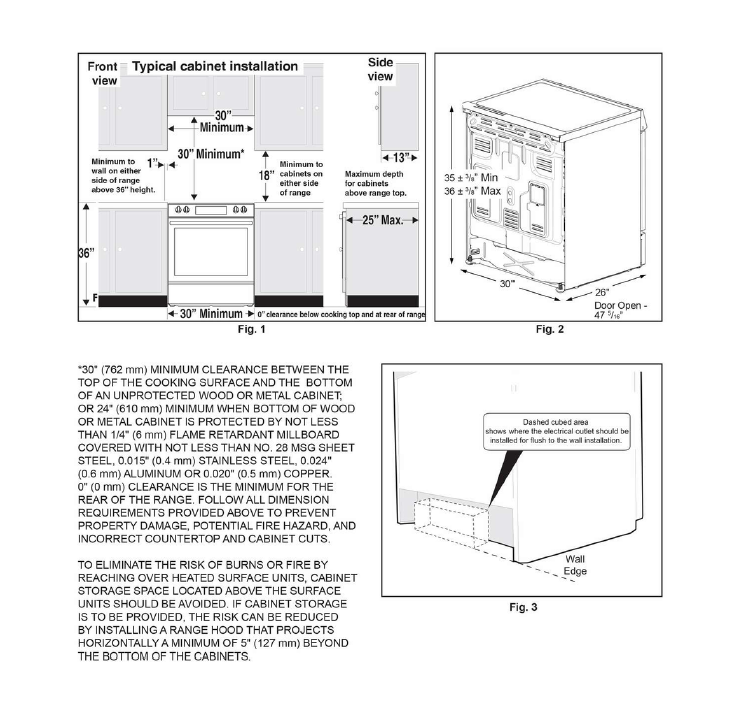

Dimensions and Volume
Minimum Height: 35 5/8"
Maximum Height: 36 3/8"
Width: 30"
Depth: 26"
Depth With Door 90° Open: 47 5/16"
Depth With Handle: 28 1/2"
Oven Interior Height: 18 1/8"
Oven Interior Width: 25 3/16"
Oven Interior Depth: 19 7/8"
Oven Capacity: 5.3 Cu. Ft.

Drawer
Drawer Type: Storage

Electrical Specifications
Amps @ 120 Volts: 10 Amps
Amps @ 240 Volts: 13 Amps
Minimum Circuit Required: 40 Amps
Voltage Rating: 240 V

General Specifications
Product Weight: 155 lbs
Prop 65 Label: Yes
Warranty - Labor: 1 Year
Warranty - Parts: 1 Year

Oven
Bake Element: 2,500 Watts
Bake Element Pass: 8
Bake Element Type: Hidden
Bake System: Yes
Broil Element: 4,000 Watts
Broil Element Pass: 6
Broil System: Yes
Cleaning System: Yes
Convection: Yes
Convection Type: Fan
Number of Convection Fans: 1
Number of Rack Positions: 6
Oven Interior Color: Midnight Black
Oven Light Quantity: 1
Oven Light Type: Halogen
Oven Light Watts: 40 Watts
Rack Position Type: Embossed
Rack Type 1: Flat
Rack Type 1 Quantity: 2

Display
Control Location: Front
Display Interface Color: White
Display Light Color: White
Display Type: LED
